تفاصيل المنتج:
|
| موجة: | 850 نانومتر | الدفع: | TT / LC |
|---|---|---|---|
| نوع الجهاز: | LC | وصف: | وحدة Cisco 40GBASE-SR4 QSFP لـ MMF |
| نوع الكابل: | MMF | استهلاك الطاقة (وات): | 1.5 |
| سحب لون علامة التبويب: | اللون البيج | مسافة الكابل: | 30م 100م 150م |
| الأبعاد: | 13.5 × 18.4 × 72.4 ملم | ||
| تسليط الضوء: | MPO Connector QSFP Transceiver Module,40 Gigabit Ethernet QSFP Transceiver Module,40G SR4 QSFP Transceiver Module,40 Gigabit Ethernet QSFP Transceiver Module,40G SR4 QSFP Transceiver Module |
||

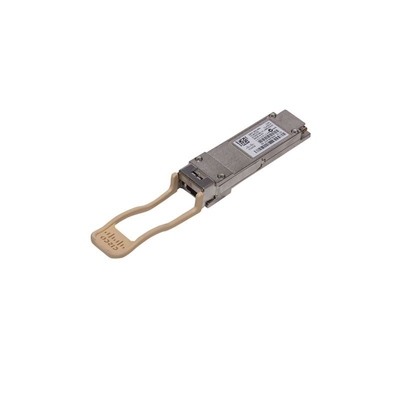

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications.
Table 1 shows the Quick Specs.
| Product Code | QSFP-40G-SR4 |
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (microns) |
50.0 50.0 50.0 |
| Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
| Cable Distance |
30m 100m 150m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Beige |
Features and benefits of Cisco QSFP 40G modules:
•Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
•Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
•Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
•High-speed electrical interface compliant to the IEEE 802.3ba standard
•QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
Table 2 shows the comparison.
| Product Code | QSFP-40G-SR4 | QSFP-40G-SR4-S= |
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF | Cisco 40GBASE-SR4 QSFP Module for MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 | 850 |
| Cable Type | MMF | MMF |
| Core Size (microns) |
50.0 50.0 50.0 |
50.0 50.0 |
| Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
| Cable Distance |
30m 100m 150m |
100m 150m |
| Power Consumption (W) | 1.5 | 1.5 |
| Pull Tab Color | Beige | Beige |
