تفاصيل المنتج:
|
| اسم المنتج: | يُحوّل | رقم الجزء: | S5735-S24P4XEZ-V2 |
|---|---|---|---|
| قسط: | تي تي | شحنة: | دي إتش إل |
| حالة: | جديد | مهلة: | 2-3 أيام |
| ضمان: | 1 سنة | الكلمات الرئيسية: | S5735-S24P4XEZ-V2 |
| إبراز: | Huawei S5735 PoE+ network switch,24-port GE PoE+ switch,Huawei S5735 with 10GE SFP+,24-port GE PoE+ switch,Huawei S5735 with 10GE SFP+ |
||

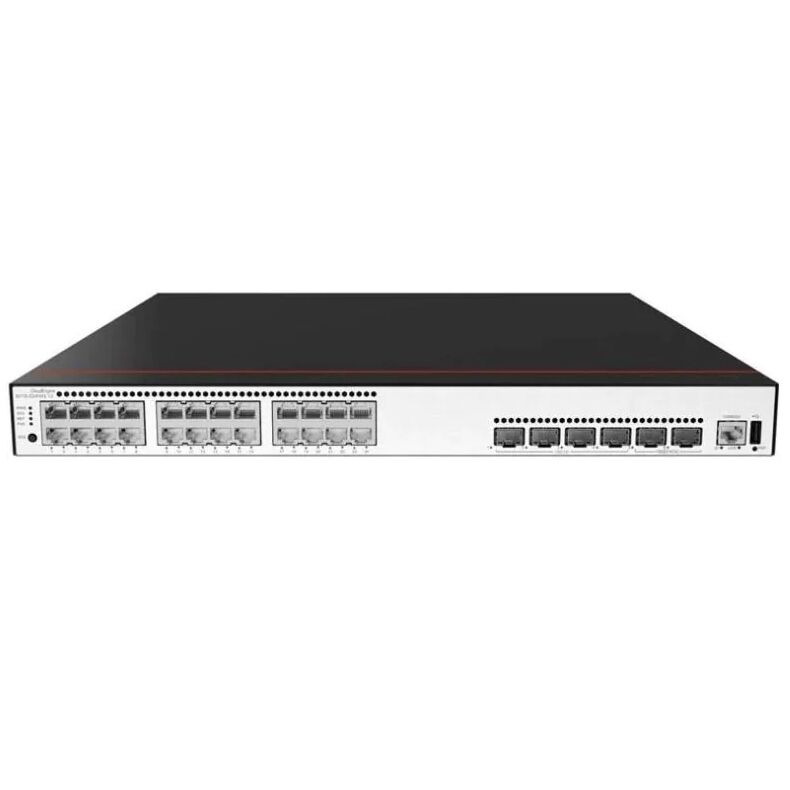

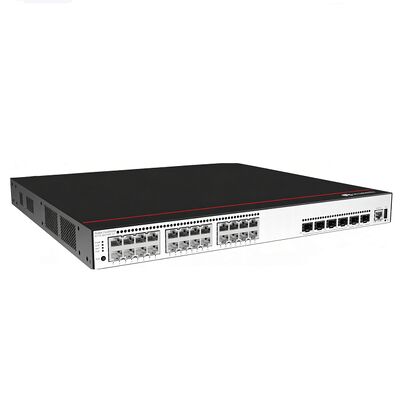

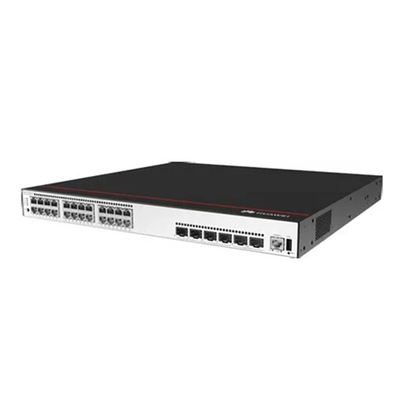

The Huawei S5735-S24P4XE-V2 is a versatile and powerful Layer 3 managed switch designed for enterprise networks. It offers a perfect combination of advanced networking features, robust performance, and high reliability to meet the demanding requirements of modern business environments. With its compact size and energy-efficient design, this switch is an ideal solution for organizations looking to upgrade their network infrastructure with cutting-edge technology.
| Parameter | Data |
|---|---|
| Brand | Huawei |
| Model | S5735-S24P4XE-V2 |
| Port Count | 24 Ethernet 10/100/1000 ports, 4 10 Gig SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Accessory | Model |
|---|---|
| Power Supply | PWR-350W-AC |
| Stacking Module | STACK-PWR-150CM |
| SFP+ Transceiver | ESFP-10G-LR |
| Model | Differences |
|---|---|
| S5730S-28P-PWR-LI-AC | Supports PoE power supply, less switching capacity |
| S5720-56C-PWR-EI-AC | Higher port count but lower 10G port density |
| S5735-L48T4X | More Ethernet ports, no built-in 10G ports, requires expansion module |
S5735-S24P4XE-V2 Specifications |
|
| Brand | Huawei |
| Product Name | S5735-S24P4XE-V2 |
| Type | Fixed Port Access Switch |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Fixed Ports | 24x 10/100/1000Base-T Ethernet ports, 4x 10GE SFP+ |
| MAC Address Table | 16K |
| RAM | 512 MB |
| Flash Memory | 512 MB |
| Packet Buffer | 1.5 MB |
| Input Voltage | AC: 100V~240V, DC: 48V~60V |
| Power Consumption | Operational: < 30W |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Form Factor | 1U, Rack Mountable |
| Jumbo Frame | Supports up to 9216 bytes frame size |
| VLAN Features | 4K VLANs, MAC VLAN, Protocol VLAN, VLAN Mapping |
| QoS (Quality of Service) | SP, WRR, DRR, SP+WRR, Congestion avoidance and congestion management |
| Security | ACLs, Secure Shell (SSH), Secure Sockets Layer (SSL), IEEE 802.1X, RADIUS, and TACACS+ |
| Management | Console, Telnet, SNMP v1/v2c/v3, sFlow, RMON, Web-based GUI, USB port for storage and log management |
| Reliability | Primary/secondary power supply system, VRRP, RRPP, BFD |
| Operating Temperature | 0°C to 50°C |
