تفاصيل المنتج:
|
| اسم المنتج: | نقطة الوصول | رقم الجزء: | محرك الهواء6776-X6ETH |
|---|---|---|---|
| قسط: | ت | شحنة: | دي إتش إل |
| حالة: | جديد | مهلة: | 2-3 أيام |
| ضمان: | 1 سنة | الكلمات الرئيسية: | محرك الهواء6776-X6ETH |

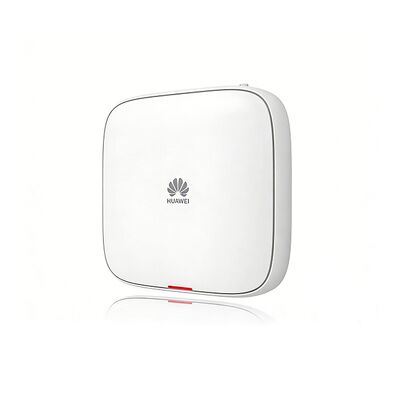

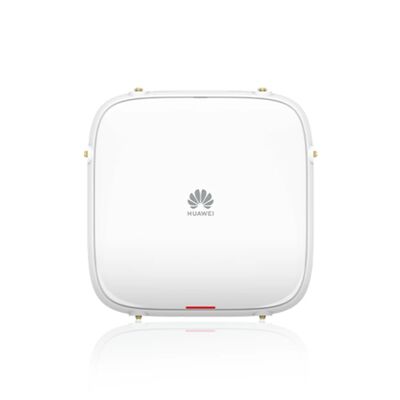

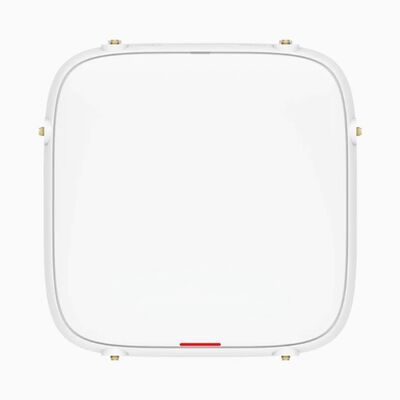

The AirEngine 6776-X6ETH is a next-generation indoor Wi-Fi 7 (802.11be) AP designed for complex indoor environments - like narrow corridors and high-rise buildings—where you need flexible antenna deployment. It supports tri-band operation with 2.4 GHz (2×2), 5 GHz (4×4), and 6 GHz (2×2) radios, delivering eight spatial streams and up to 7.89 Gbps aggregate device rate. External RP-SMA connectors let you attach specialized antennas for optimized coverage, while dual PoE inputs (5 GE RJ45 + 10 GE SFP+) ensure redundant power and simplified cabling.
| Accessory | Category | Description |
|---|---|---|
| PoE Power Solution | Power | IEEE 802.3bt/at injectors or switches for hybrid-cable power. |
| Outdoor Antennas | RF | External antenna options for customized coverage. |
| Mounting Hardware | Installation | Brackets and enclosures for outdoor mounting. |
| Parameter | Specification |
|---|---|
| Model | Huawei AirEngine 6776‑X6ETH |
| Wi‑Fi Standard | IEEE 802.11be (Wi‑Fi 7) |
| Radios | Tri-band: 2.4 GHz, 5 GHz, 6 GHz |
| Spatial Streams | 2×2 (2.4 GHz) + 2×2 (5 GHz) + 4×4 (6 GHz) = 8 streams |
| Max Throughput | 13.66 Gbps |
| External Antenna Support | Supports flexible, optimized outdoor antennas |
| Radio Modes | Mode 1: 2.4+5H+5L (7.89 Gbps); Mode 2: 2.4+5+6 (13.66 Gbps) |
| Uplink Ports | 1×10GE Optical (PoE-In), 1×10GE Electrical (PoE-In), 1×GE Electrical (PoE-In) |
| Power Input Options | PoE-In (IEEE 802.3bt/at); DC 18–60 V (hot backup) |
| Protection Rating | IP68, –40 °C to +70 °C |
| Surge Protection | 6 kA/6 kV on Ethernet and RF ports |
| Max Client Density | Up to 1,800 users |
| BLE Support | BLE for O&M via CloudCampus |
| Management Modes | Fit, Fat, and Cloud-managed |
| Dimensions (H × W × D) | 85 × 280 × 220 mm |
| Operating Humidity | 0%–100% non-condensing |
