تفاصيل المنتج:
|
| اسم المنتج: | يُحوّل | رقم الجزء: | C9300L-48PF-4X-E |
|---|---|---|---|
| قسط: | تي تي | شحنة: | دي إتش إل |
| حالة: | جديد | مهلة: | 2-3 أيام |
| ضمان: | 1 سنة | الكلمات الرئيسية: | C9300L-48PF-4X-E |
The Cisco C9300L-48PF-4X-E is a powerful and versatile switch designed for small to medium-sized business networks. It offers a combination of high-density ports, advanced switching capabilities, and enhanced power over Ethernet (PoE) capabilities.
The C9300L-48PF-4X-E switch provides 48 ports of Gigabit Ethernet connectivity with Power over Ethernet Plus (PoE+) support. These ports can deliver both data and power to PoE-enabled devices such as IP phones, wireless access points, and surveillance cameras. The PoE+ technology offers increased power levels, making it suitable for a wide range of power-hungry devices.
The switch supports advanced switching features, including Layer 2 and Layer 3 switching, VLANs (Virtual Local Area Networks), and Quality of Service (QoS) capabilities. These features enable efficient traffic management, network segmentation, and prioritization of critical applications. The C9300L-48PF-4X-E switch also supports features such as multicast routing and advanced security mechanisms.
Enhanced power over Ethernet capabilities are a key feature of the C9300L-48PF-4X-E switch. It provides four additional 10 Gigabit Ethernet uplink ports, allowing for high-speed connectivity to other switches, servers, or network devices. These uplink ports can support both copper and fiber connections, providing flexibility in network design and deployment.
The C9300L-48PF-4X-E switch is managed through Cisco DNA Center, providing a centralized platform for network management, automation, and analytics. It offers advanced features such as network monitoring, configuration management, and policy enforcement, enabling efficient network operations and troubleshooting.
In summary, the Cisco C9300L-48PF-4X-E switch is a powerful and versatile solution for small to medium-sized business networks. Its combination of Gigabit Ethernet ports with PoE+ support, advanced switching capabilities, enhanced power over Ethernet capabilities, and high-speed uplink ports make it an ideal choice for organizations that require reliable and efficient connectivity for a variety of network devices and applications.

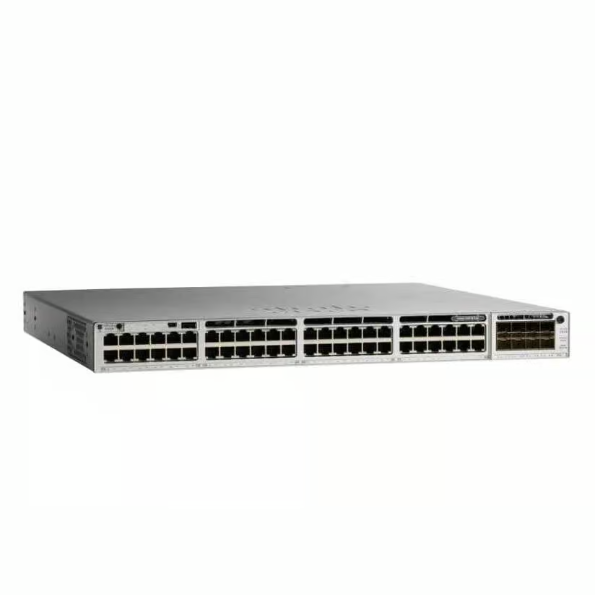

Figure 1 shows the front panel of C9300L-48PF-4X-E.
| Product Description | Cisco Catalyst 9300L – Network Essentials – switch – 48 ports – managed – rack-mountable |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 890 W |
| Performance | Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps |
| Capacity | IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Features | Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| Power | AC 120/230 V (50 – 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 1.7 in x 19.2 in |
| Weight | 15.5 lbs |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Bundled Services | 1 year Network Essentials |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 890 W |
| Performance | Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps |
| Capacity | IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MPLS, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | Non-Stop Forwarding (NSF), Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Location ID Separation Protocol (LISP), Blue Beacon LED, Zero-touch provisioning (ZTP), CoAP support, secure boot, Switched Port Analyzer (SPAN), Security Group Tag (SGT) caching, Protocol Independent Multicast (PIM), First Hop Security (FHS), Audio Video Bridging (AVB), PVLAN support, Graceful Insertion and Removal (GIR) mode, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10GBase-X SFP+ uplink ¦ 1 x management (LAN) RJ-45 ¦ 1 x console ¦ 1 x USB 2.0 |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| MTBF | 298,880 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04 |
| Width | 17.5 in |
| Depth | 1.7 in |
| Height | 19.2 in |
| Weight | 15.5 lbs |
