| اسم المنتج: | كابل تصحيح الألياف الضوئية | رقم الجزء: | 473304A فوفب |
|---|---|---|---|
| طول الكابل: | 50 مترا | مهلة: | 1 ~ 3 أيام |
| حالة: | جديد | قسط: | TT / باي بال |
| شحنة: | دي إتش إل/فيديكس | ضمان: | 1 سنة |
| Item | Description |
|---|---|
| Product Type | Fiber Optic Patch Cable |
| Connector Type | LC to LC Duplex |
| Fiber Mode | Multimode (MM) |
| Cable Length | 50 meters |
| Structure | Dual Fiber (Duplex) |
| Application | Data Center / LAN |
| Jacket Material | PVC / LSZH (optional) |
| Performance | Low loss, high stability |
| Parameter | Specification |
|---|---|
| Model Number | 473304A FUFBB |
| Fiber Type | Multimode OM3/OM4 compatible |
| Connector Polish | UPC / APC optional |
| Connector End | LC-LC Duplex |
| Insertion Loss | ≤ 0.3 dB (typical) |
| Return Loss | ≥ 35 dB |
| Cable Diameter | 2.0mm / 3.0mm optional |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Durability | ≥ 1000 mating cycles |
| Compliance | IEC, RoHS compliant |

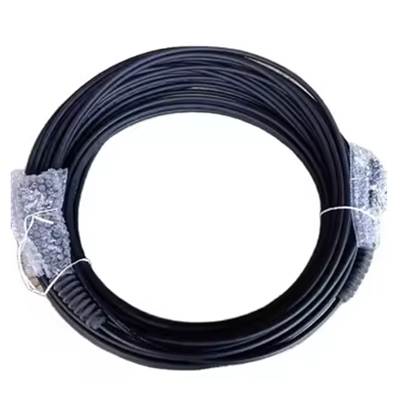

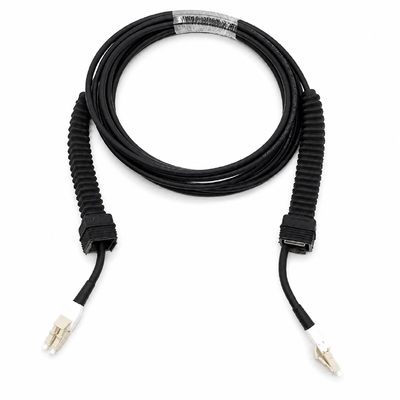

The 473304A FUFBB MM OD Fiber Optic LC-LC Duplex Patch Cable 50m is a high-performance multimode fiber jumper designed for modern data communication networks. It provides stable and low-loss optical transmission, making it ideal for high-speed backbone connections in data centers, enterprise LANs, and telecom environments.

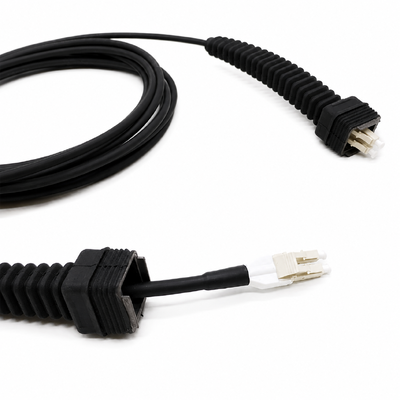

Built with precision-polished LC connectors, this fiber cable ensures excellent repeatability and low insertion loss, helping maintain signal integrity over long distances. The duplex structure allows simultaneous bi-directional transmission, improving network efficiency and reducing deployment complexity.
With support for OM3/OM4 multimode standards, this 50-meter fiber patch cable is optimized for high bandwidth applications such as 10G/40G/100G Ethernet links in structured cabling systems.
Q1: What is the difference between single-mode and multimode fiber cable?
A: Multimode fiber (MM) is designed for short-distance, high-speed data transmission within data centers, while single-mode is used for long-distance communication.
Q2: Can this LC-LC fiber cable support 10G or 40G networks?
A: Yes, when used with OM3 or OM4 multimode infrastructure, it supports 10G, 40G, and even 100G short-range transmission.
Q3: Is this fiber cable compatible with Cisco or Huawei equipment?
A: Yes, LC-LC duplex fiber patch cables are widely compatible with Cisco, Huawei, Juniper, and other networking devices.
Q4: What is your warranty and after-sales service?
A: Typically, the product comes with a 1-year warranty. Technical support and replacement services are available depending on order terms.
Q5: Can I customize cable length or jacket type?
A: Yes, custom lengths, LSZH jackets, and connector polishing options are available for bulk orders.
