تفاصيل المنتج:
|
| حالة: | الأصلي الجديد | نموذج: | QSFP-40G-SR4-S |
|---|---|---|---|
| نوع الكابل: | MMF | استهلاك الطاقة (وات): | 1.5 |
| قوة الإرسال (ديسيبل): | الحد الأقصى: +2،4 لكل حارة دقيقة: -7.6 لكل حارة | الطول الموجي للإرسال والاستقبال (نانومتر): | 840 إلى 860 |
| ماركة: | سيسكو | الحجم الأساسي (ميكرون): | 50.0 |
| إبراز: | 40GBASE-SR4 QSFP+ transceiver module,QSFP+ MMF transceiver with MPO connector,IEEE 802.3ba compliant QSFP+ module,QSFP+ MMF transceiver with MPO connector,IEEE 802.3ba compliant QSFP+ module |
||
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing 00networks, enterprise core and distribution layers, and service provider applications. Table 1 shows the Quick Specs. 50.0 50.0 2000 (OM3) 4700 (OM4) 100m 150m Features and benefits of Cisco QSFP 40G modules:

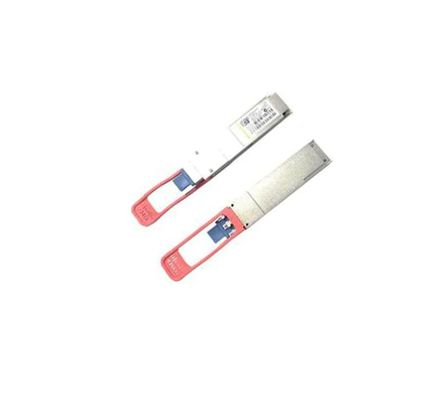

QSFP-40G-SR4-S Overview
Quick Specs
Product Code
QSFP-40G-SR4-S
Description
Cisco 40GBASE-SR4 QSFP Module for MMF
Dimensions
13.5 x 18.4 x 72.4 mm
Wavelength (nm)
850
Cable Type
MMF
Core Size (microns)
Modal Bandwidth (MHz-km)
Cable Distance
Power Consumption (W)
1.5
Pull Tab Color
Beige
Product Details
Table 2 shows the comparison.
| Product Code | QSFP-40G-SR4 | QSFP-40G-SR4-S= |
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF | Cisco 40GBASE-SR4 QSFP Module for MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 | 850 |
| Cable Type | MMF | MMF |
| Core Size (microns) |
50.0 50.0 50.0 |
50.0 50.0 |
| Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
2000 (OM3) 4700 (OM4) |
| Cable Distance |
30m 100m 150m |
100m 150m |
| Power Consumption (W) | 1.5 | 1.5 |
| Pull Tab Color | Beige | Beige |
