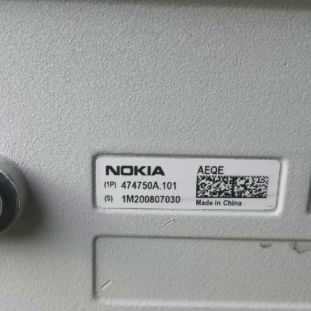

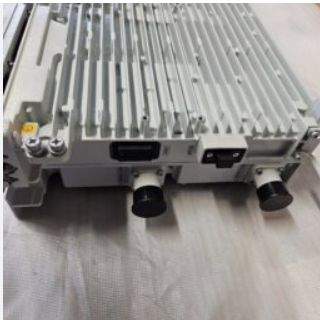

474750A (AEQE) A Component Of A Base Station For Mobile Networks

The 474750A (AEQE) is a component of a base station for mobile networks. It features 64 transmit/receive (T/R) paths with support for 64T64R MIMO, 256QAM modulation, and 200 MHz instantaneous bandwidth. The unit supports digital beamforming, a 32TRX + 32TRX split mode, and connects to the baseband unit via eCPRI over SFP28 ports.

• Model: 474750A (AEQE)
• Product: Nokia AirScale MAA 64T64R 192AE n78 200W (Massive Antenna Array)
• Technology: 5G NR
• Frequency Band: n78 (


  3480 38003480 space 3800

  3480 3800
  MHz)
• Bandwidth: 200 MHz (instantaneous), 100 MHz (occupied)
• Output Power: 200W total, 3.125W per TRX (software settable)
• Transmitter/Receiver Paths: 64T / 64R
• MIMO Streams: 16
• Modulation: Up to 256QAM
• Beamforming: Digital, 64T64R
• Connectivity: Dual SFP28 (10/25GE eCPRI) for baseband connection
• Dimensions:


  750*450*240750 cross 450 cross 240

  750*450*240
  mm (H x W x D)
• Weight: 45 kg (without bracket)
• Supply Voltage:


  -40.5negative 40.5

  −40.5
  to


  -57negative 57

  −57
  V DC
• Ingress Protection: IP65 / Class II, 20 kA

• Supports split mode with 32TRX + 32TRX capability
• Supports digital beamforming for multi-user MIMO
• Compliance with 3GPP/CEPT/Ficora/ETSI NR standards
• Includes other ports for RF monitoring (SMA), control (AISG), alarms (MDR26), and LMI/HDMI
• Natural convection cooling
