تفاصيل المنتج:
|
| اسم المنتج: | محولات شبكة هواوي | رقم الجزء: | S5735-L48LP4XE-A-V2 |
|---|---|---|---|
| قسط: | ت | شحنة: | دي إتش إل |
| حالة: | جديد | مهلة: | 2-3 أيام |
| ضمان: | 1 سنة | الكلمات الرئيسية: | S5735-L48LP4XE-A-V2 |
|
Product Code |
S6730-H24X6C |
|
Fixed ports |
24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Chassis height(U) |
1U |
|
Input voltage |
• AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage:-38.4V DC～-72V DC |
|
Input current |
AC 600W:Max 8A DC 1000W:Max 30A |
|
Maximum power consumption |
231W |
|
Minimum power consumption |
97W |
|
Product Code |
S6730-H24X6C |
S6730-H48X6C |
|
Fixed ports |
24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
442 mm x 420 mm x 43.6 mm |
|
Chassis height(U) |
1U |
1U |
|
Input voltage
|
• AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage:-38.4V DC～-72V DC |
• AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage:-38.4V DC～-72V DC |
|
Input current |
AC 600W:Max 8A DC 1000W:Max 30A |
AC 600W:Max 8A DC 1000W:Max 30A |
|
Maximum power consumption |
231W |
274W |
|
Minimum power consumption |
97W |
97W |

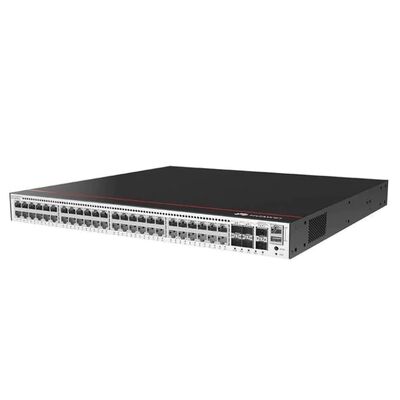

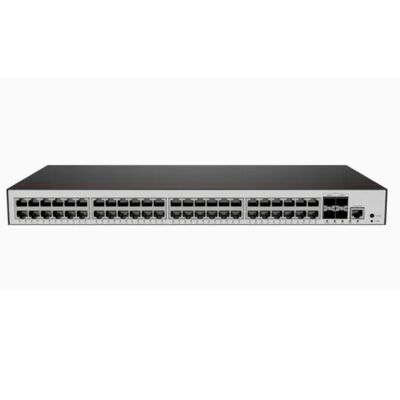

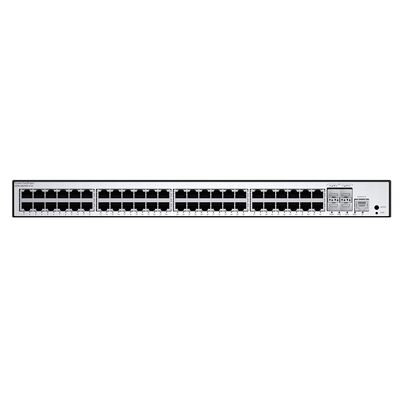

S5735-L48LP4XE-A-V2 Specifications |
|
| Model | S5735-L48LP4XE-A-V2 |
| Fixed Ports | 48 x 1GE Electric Ports |
| Uplinks | 4 x 10GE SFP+ Ports |
| Power Supply | 2 x AC Power Supply |
| Fans | 4 x Fan Box |
| Airflow | Front-to-Back |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 132 Mpps |
| Dimensions (HxWxD) | 43.6 mm x 442 mm x 420 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| MAC Address Table | 32K |
| ARP Table | 10K |
| IPv4 Routing Table | 10K |
| IPv6 Routing Table | 5K |
| VLANs | 4K |
| Power Consumption | Maximum 110W |
| MTBF | >200,000 hours |
| Compliance | CE, FCC, RoHS |
