تفاصيل المنتج:
|
| اسم المنتج: | جهاز الإرسال والاستقبال البصري SFP | رقم الجزء: | QSFP56-200G-SR4 |
|---|---|---|---|
| شحنة: | دي إتش إل | حالة: | جديد |
| مهلة: | 2-3 أيام | ضمان: | 1 سنة |
| الكلمات الرئيسية: | QSFP56-200G-SR4 | ||
| إبراز: | 200G QSFP56 SR4 optical transceiver,MPO-12 850nm transceiver module,100m QSFP56 optical transceiver,MPO-12 850nm transceiver module,100m QSFP56 optical transceiver |
||
The QSFP56-200G-SR4 is a high-speed, short-reach optical transceiver module designed for 200 Gigabit Ethernet connectivity within data centers. It utilizes 4 lanes of 50G PAM4 technology to achieve a total throughput of 200Gbps, making it ideal for high-density, next-generation network infrastructures.

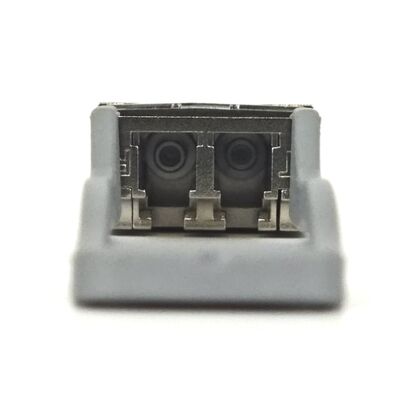

Figure 1 shows the front panel of QSFP56-200G-SR4 .
Table 1 shows the Quick Specs
| Parameter | Details |
|---|---|
| Form Factor | QSFP56 |
| Data Rate | 200Gbps (4x50G PAM4) |
| Wavelength | 850nm |
| Distance | 70m (OM3), 100m (OM4) |
| Connector | MPO-12 |
| Temperature | 0°C ~ 70°C |
| Power | < 3.5W |
| Parameter | Specification |
|---|---|
|
Product Model
|
QSFP56-200G-SR4
|
|
Standard
|
IEEE 802.3cd 200GBASE-SR4
|
|
Form Factor
|
QSFP56, Hot-pluggable
|
|
Aggregate Bandwidth
|
200 Gbps (212.5 Gbps line rate)
|
|
Lane Data Rate
|
26.5625 GBd per lane (PAM4)
|
|
Optical Wavelength
|
850 nm
|
|
Transmitter Technology
|
4-channel 850nm VCSEL array
|
|
Receiver Technology
|
4-channel PIN photodetector array
|
|
Fiber Type
|
Multimode Fiber (MMF) - OM3/OM4
|
|
Max Distance
|
70m over OM3, 100m over OM4
|
|
Connector
|
MPO-12 (UPC)
|
|
Power Supply
|
Single 3.3V
|
|
Power Consumption
|
< 3.5 Watts
|
|
Operating Temp.
|
Commercial (0°C to +70°C)
|
|
Digital Diagnostics
|
DDM/DOM (SFF-8636)
|
|
Laser Class
|
Class 1 Laser Safety
|
|
Compliance
|
RoHS compliant, QSFP MSA, CMIS 4.0
|
|
Applications
|
Data Centers, HPC, AI/ML Clusters, 200G Ethernet
|
